HEAT PUMPS
Laminox Idro · Made in Italy

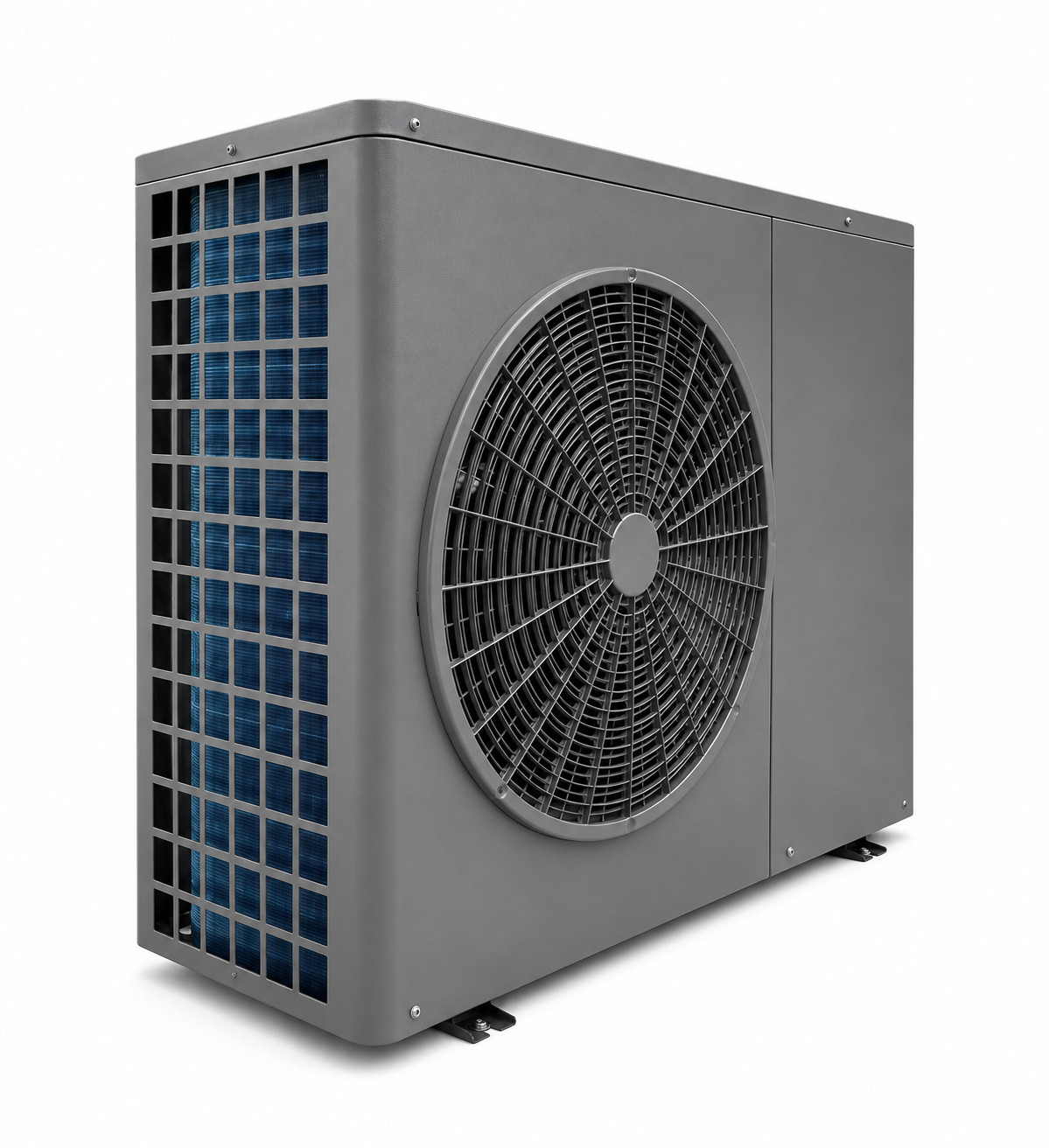

FSH HP Master Air-to-Water Heat Pump
Multifunction inverter heat pump with R290 refrigerant — 6 kW to 19 kW
The FSH HP Master is an air/water multifunction heat pump with inverter compressor, designed for residential installations and running on R290 natural refrigerant. A single outdoor monobloc unit provides heating and cooling, and with a suitable cylinder your domestic hot water too — working with radiators, underfloor heating or fan coils.
- A++ energy rating
- R290 natural refrigerant
- Inverter
- Heating & cooling
- Monobloc — no indoor refrigerant
- 5 sizes: 6–19 kW
12.20 kWHeating output
9.40 kWCooling output
4.83SCOP at 35°C
54 dB(A)Sound level
Why FSH HP Master
Efficient, quiet, and kind to the planet
A++ efficiency
Seasonal efficiency (SCOP) of up to 4.83 at 35°C flow — roughly 4.8 units of heat for every unit of electricity over a heating season.
R290 natural refrigerant
Propane-based R290 has a global warming potential of just 3 — a fraction of conventional refrigerants — and allows high flow temperatures.
Inverter compressor
Modulates its output to match what the house actually needs instead of switching on and off — steadier temperatures and lower running costs.
Heating and cooling
Reversible — heats in winter and, with fan coils or underfloor circuits, cools in summer from the same unit.
Works with radiators
Rated for 55°C flow (SCOP 3.60 on the 12 kW), so it suits existing radiator systems as well as low-temperature underfloor heating.
Quiet outdoor unit
54 dB(A) on the 6, 9 and 12 kW models — comparable to a quiet conversation — so it sits happily beside the house.
Product details
FSH HP Master 12 kW — specifications
| Model | FSH HP Master Laminox Idro 12 kW (12DC R290) |
|---|---|
| Type | Air/water multifunction heat pump, inverter, monobloc |
| Refrigerant | R290 |
| Energy rating | A++ |
| Heating output | 12.20 kW |
| Cooling output | 9.40 kW |
| Maximum power input | 3.75 kW |
| SCOP (35°C flow) | 4.83 |
| SCOP (55°C flow) | 3.60 |
| Sound level | 54 dB(A) |
| Power supply | 230 V ~ / 1 / 50 Hz (single phase) |
| Dimensions (L×D×H) | 1115 × 415 × 900 mm |
| Weight | 110 kg |
| Colour | Aluminium grey |
| Casing | Steel |
Figures as published by Laminox. SCOP = Seasonal Coefficient of Performance (seasonal heating efficiency) at the stated flow temperature.
Five sizes to suit your home
Same unit, five outputs. We size the heat pump to your home’s heat loss — not just its floor area — so it runs efficiently all year.
- 6 kW6.40 kW heating · 6.25 kW coolingSCOP 4.75
- 9 kW9.15 kW heating · 8.85 kW coolingSCOP 4.72
- 12 kW12.20 kW heating · 9.40 kW coolingSCOP 4.83
- 15 kW14.60 kW heating · 13.80 kW coolingSCOP 4.64
- 19 kW19.00 kW heating · 15.50 kW coolingSCOP 4.64
SCOP shown at 35°C flow. All models are A++ rated and run on a single-phase 230 V supply.
Compare the range
FSH HP Master — technical data by size
| Model | 6 kW | 9 kW | 12 kW | 15 kW | 19 kW |
|---|---|---|---|---|---|
| Heating output | 6.40 kW | 9.15 kW | 12.20 kW | 14.60 kW | 19.00 kW |
| Cooling output | 6.25 kW | 8.85 kW | 9.40 kW | 13.80 kW | 15.50 kW |
| Maximum power input | 3.15 kW | 3.15 kW | 3.75 kW | 5.50 kW | 7.00 kW |
| SCOP (35°C) | 4.75 | 4.72 | 4.83 | 4.64 | 4.64 |
| SCOP (55°C) | 3.63 | 3.05 | 3.60 | 3.64 | 3.59 |
| Energy rating | A++ | A++ | A++ | A++ | A++ |
| Sound level | 54 dB(A) | 54 dB(A) | 54 dB(A) | 60 dB(A) | 58 dB(A) |
| Power supply | 230 V / 1 / 50 Hz | 230 V / 1 / 50 Hz | 230 V / 1 / 50 Hz | 230 V / 1 / 50 Hz | 230 V / 1 / 50 Hz |
| Water connection | 1″ M | 1″ M | 1″ M | 1″ M | 1¼” M |
| Dimensions (L×D×H) | 1115 × 415 × 900 mm | 1115 × 415 × 900 mm | 1115 × 415 × 900 mm | 1250 × 445 × 983 mm | 1115 × 415 × 1332 mm |
| Weight | 90 kg | 110 kg | 110 kg | 110 kg | 145 kg |
| Refrigerant | R290 | R290 | R290 | R290 | R290 |
The 6, 9 and 12 kW models share the same compact single-fan cabinet (1115 × 415 × 900 mm). The 15 kW is a larger single-fan unit and the 19 kW is a taller twin-fan unit for bigger homes.
Download the Laminox technical sheet (PDF)
Good to know
Frequently asked questions
Will a heat pump work with my existing radiators?
Usually, yes. The FSH HP Master is rated for 55°C flow temperatures, which suits most radiator systems, though some homes benefit from upsizing a few radiators. We’ll check this as part of the survey.
Is there an indoor unit?
The FSH HP Master is a monobloc: the whole refrigerant circuit is sealed inside the outdoor unit and only water pipework runs into the house, where it connects to your heating system and hot-water cylinder. That keeps the indoor installation simple.
Which size do I need?
It depends on your home’s heat loss — its size, insulation, glazing and how well it’s sealed — rather than floor area alone. As a rough guide the 6–9 kW units suit well-insulated homes and the 12–19 kW units larger or older houses. We size every installation properly before quoting.
How noisy is it?
The 6, 9 and 12 kW units are rated at 54 dB(A), the 19 kW at 58 dB(A) and the 15 kW at 60 dB(A). For comparison, normal conversation is around 60 dB. Siting the unit sensibly keeps it unobtrusive.
Does it cool the house in summer?
Yes — the unit is reversible and can provide cooling (6.25–15.50 kW depending on model) through fan coils or underfloor circuits designed for it. Standard radiators are not suitable for cooling.
Thinking about a heat pump?
Call us to talk through your home and heating system, or visit the showroom in Rochfortbridge. We’ll recommend the right size and give you a clear quote for supply and installation.
